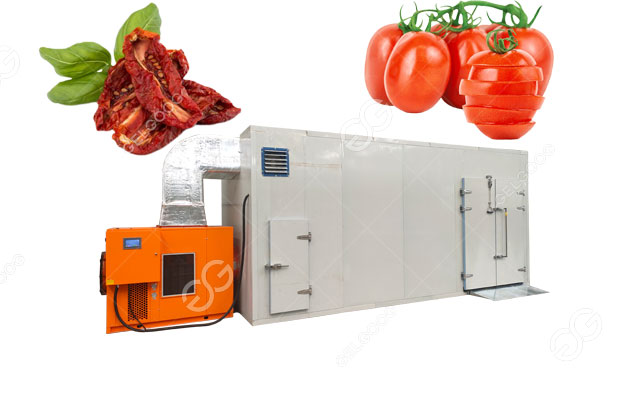

Industrial Tomato Dehydtator Drying Machine

Model GG-7P
Capacity 300-700kg/time
Voltage 380V50HZ
Size Customize
Description

Tomato drying machine is also known as air energy heat pump dryer for tomato drying. It is currently an ideal drying method for tomatoes. It is close to natural drying. The evaporation rate of the surface moisture of the tomato is close to the migration rate of the moisture inside. The color of the dried tomato is finished with good quality.This drying method is not affected by the seasonal climate and runs stably throughout the year.


Technical Parameters

Tomato Drying Machine Parameter

Item

Heat Pump Dryer Parameter

Model

GG-3P

GG-7P

GG-15P

Unit

Environment temperature

-10-43

-15-43

-15-43

ºC

Drying temperature range

30-75

30-75

30-75

ºC

Rated power

4

12

21

Kw

Maximum power

10

18

33

Kw

Power supply form

380/3/50

380/3/50

380/3/50

V/Ph/Hz

Temperature control accuracy

±1

±1

±1

ºC

Electric heating power

6

6

12

Kw

Controller

Single chip microcomputer/PLC+color screen control

Noise level

≤75

≤75

≤75

dB(A)

Capacity

100-200

300-700

800-1500

Kg

Dehydration capacity

9

21

43

Kg/h(=50ºC,80%)


Advantages

Tomato Drying Machine Advantages

Precise temperature control

The tomato drying temperature can be precisely controlled, and the dried tomato slices are of good quality

Programmable control

Tomato drying machine adopts touch-screen programmable control, no need for manual supervision after setting the corresponding program, which is convenient to use

Closed drying room

During the entire drying process, the tomatoes in the drying room are not in contact with the outside world, and will not cause secondary pollution to the tomatoes

Obvious energy saving effect

Its heat comes from air temperature, which is 75% less than electric heating wire heating, 40% less energy than oil burning, and 30% less energy than coal burning


Features

Tomato Dehydrator Machine Features

1. Stable performance, simple operation, support 10-stage process control, meet the drying methods of different materials

2. Adopt PLC programmable control method, can set different drying curves, such as: temperature, humidity, time, etc.

3. The heat pump drying device not only has the drying function, but also has multiple functions such as cooling, heating, and dehumidification.

4. With power-off memory function, one-key setting, intelligent operation management.
