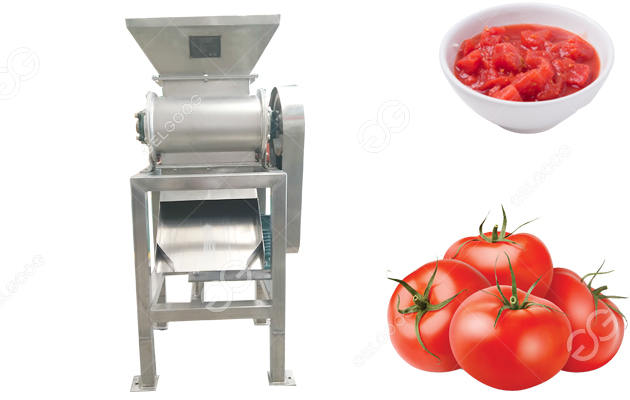

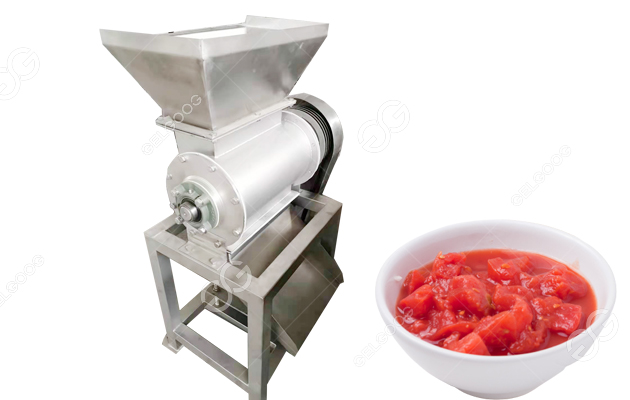

Tomato crushing machine is mainly used for crushing pre-cooked and softened tomatoes into 5-8mm ,it is tomato paste sauce ketchup pre-processing machinery. It has the advantages of novel and compact structure, energy saving and high efficiency, large production capacity, and wide application range.This tomato crusher machine is mainly composed of frame, discharge hopper, motor, bottom knife, fly knife shaft, feed hopper, filter screen and other important parts.
When tomato chopping machine working, the motor drives the main shaft to rotate at a constant speed through a pair of pulleys, and the main shaft is equipped with a flying knife to rotate at a high speed.The tomatoes fall freely into the hopper from the elevator, and are chopped by the high-speed rotating flying knife. Due to the centrifugal force, the tomatoes fall into the hopper through the waist-shaped screen, and then are pumped down by the feeding pump.
Model | GG |
Capacity | 1-5T/H |
Power | 2.2Kw |
Flying knife speed | 480r/min |
Dimension | 630×545×1180mm |
The blade is sharp and can chop tomatoes to 5-8mm;
High tomato crushing efficiency, capable of crushing 1-5 tons of tomatoes per hour;
During the operation of the tomato crushing machine, the noise is low and there is almost no noise;
Food-grade stainless steel material, no harm to the human body;
Wide range of applications, suitable for the crushing of various berries and pome fruits and vegetables;
The entire tomato crushing process is carried out in a closed environment to ensure the cleanliness of the tomato crushing environment;
